Product Details:
Payment & Shipping Terms:
|
| Power: | 500W | Needle: | Single Needle, DPx17#18 |
|---|---|---|---|
| Overall Dimensions: | 1200*1060*1170mm | Stitch Formation: | Lock Stitch |
| Mechanical Configuration: | Flat Bed | Press Foot Type: | Pneumatic |
| High Light: | single needle lockstitch machine,direct drive sewing machine |
||

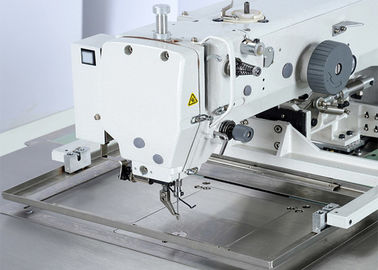

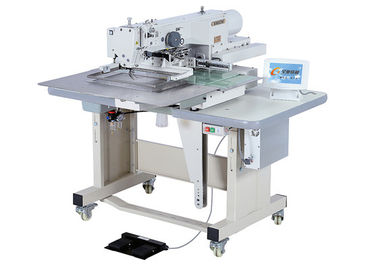

2200rpm Speed Lockstitch Sewing Machine Automatic Heavy Duty Easy To Use
Suitable for heavy material ,excellent durability ,stable fabric feed wile sewing the inflationary and lately movable material of medium-heavy material,Adopt automatic lubrication system to guarantee enough lubrication when machine runs at low speed big hook with double thread consumption to decrease bottom thread change frequency and increase sewing efficiency.Roller needle link take-up thread ,stable work.It's suitable for processing leather,leatherette,sofa and cases.
| Model | XC-2516R |
| Sewing Scope | 250*160mm |
|
Max speed ( rpm )( <3mm ) ) |
Recommend speed: 2500 |
| Speed scope ( rpm ) | 200-2300 |
| Feeding | Intermission/Continuous |
| Stitch gap | 0.1-12.7mm ( Min gap 0.1mm ) |
| Max stitch | 8000stitch/pattern |
| Max pattern | 999 |
| Scale | X, Y 10-200% ( min 0.1%) |
| Mirror | X, Y and origin |
| Rotation | 360 |
| Needle | Based on thickness, DP*17 #18 |
| Shuttle | Waver |
| Press foot | Pneumatic |
| Outer press foot move range | 32mm |
| Inner press foot move range | 20mm |
| Inner press foot wove range | 4-10m |
| Main motor | AC Servo 400W/3000rpm |
| Power supply | AC220-240V |
| CBM | 1200*1060*1170mm |
| Weight | 176kg |
1.Computer pattern sewing machine can help companies save manpower, reduce wastage , improve quality, increase productivity, improve the company's customer satisfaction, in order to achieve the objective of improve the company's core competitiveness.
2.100% the stitch won't be off because of ourpatent device.
3. Selecting high abrasion resistance spare parts to ensure the stability and longer lifetime for the machines.
4. Movable and reversal presser to act as “ robotic arm” for sewing faster and avoiding getting workers hurt.
5. With automatic parking, automatic thread trimmer, automatic pine line, auto-dial line, automatic presser foot and other functions, easy operation.Regardless of how complex patterns can be a one-time perfect sewing, anyone skilled to operate the machines in a very short period of time.
6.Application items: specially for cap/visor. It does not only make the product much more beautiful, but also increase the production efficiency.
