| Condition: | New | Stitch Formation: | Lock Stitch |
|---|---|---|---|
| After-sales Service: | Oversease Service Available In Vietnam, Cambodia And Myanmar | Needle: | DPx17 |
| Feeding: | Semi-automatic | Hook And Eye Width: | 20-75mm |
| Highlight: | undergarments manufacturing machine,bra panty making machine |
||
1. This series of machines are with link-lever feed system , link-type take-up lever and rotary hook to form double-thread lock-stitch.
2. With forward/ reverse feed system and auto-lubrication system.
3. Low vibration , low noises, over-coats, fashion dress and children clothes.
4. With fully magnetic valve control system,not require compressed air.
5. This machine is with steel needle-bar which enhance the the take-up travel, suitable for materials like leather , canvas, jeans clothes.
1) Sewing size adjustable (within 5 buckles).
2) Feeding: automatic electric sensor feeding.
3) Press foot style: Pneumatic.
4) Hook: double capacity shuttle hook.
5) Saving two labour workers compared to conventional sewing machine.

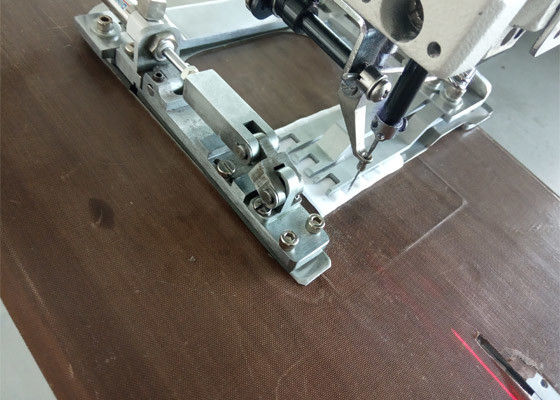

XC-218G-WXA bra buckle pattern sewing machine is suitable for automatically sewing bra buckles, as fast as 1500~2000 pairs per day. By applying our technology, bra factories are available to improve production quality and efficiency at the same time.
|
SPECIFICATIONS FOR XC-218G-WXA Bra Buckle Pattern Sewing Machine
|
|||
|
Efficiency
|
Max speed
|
rpm
|
2800
|
|
Speed rage
|
rpm
|
200~2000(10 phases)
|
|
|
Manpower Saved
|
person(s)
|
2
|
|
|
Main performance parameters
|
Max stitch qty
|
stitches/pattern
|
8000
|
|
Buckle dim
|
mm
|
Width: 1mm~8mm
Length: 25mm~95mm
|
|
|
Needle type
|
DP
|
17#18
|
|
|
Power system
|
Motor
|
servo motor
|
direct drive
|
|
Power
|
AC220V (grouding)
|
750W
|
|
|
Control
|
Electronic startup
|
one button
|
|
