Product Details:
Payment & Shipping Terms:
|
| Name: | Single Needle Compound Feed High Post Bed Sewing Machine For Handbag | Max Speed: | 1600RPM |
|---|---|---|---|
| Nddle Type: | DP*17 #12-#24 | Needle Distance: | 6.0mm |
| Press Foot Lift: | 15mm | Post Type: | Round Or Square Post |
| Post Height: | 555mm,703mm Available | Hook Place: | Left Or Right Available |
| Complete Set Include: | Machine Head, Table, Stand, Motor | Motor Power: | Electric Motor |
| Voltage: | 220v |

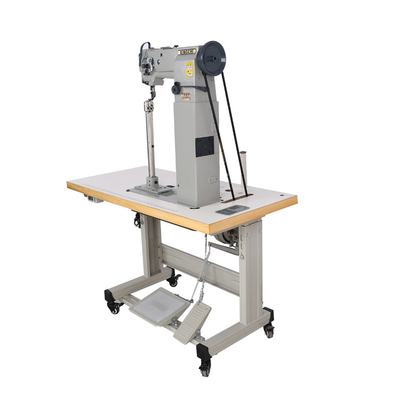

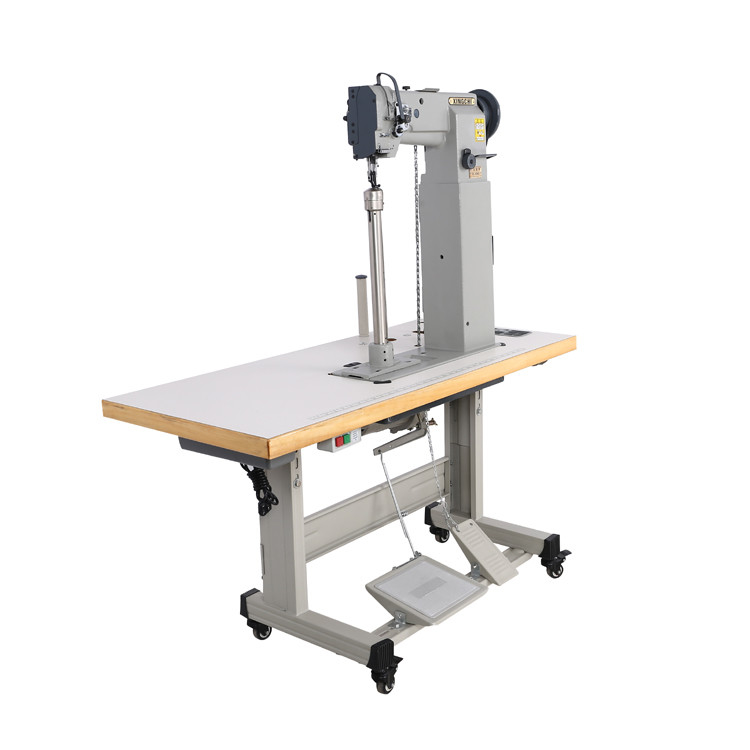

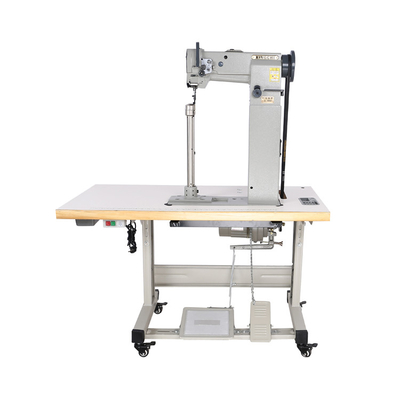

Single needle,unison feed, High postbed sewing machine.(Left-side postbed, standard hook)
Handbag
Sewing speed:1600rpm
Needle :DP*17 #22 (#19-#23)
Thread: #8
Max stitch length:6.0mm
Needle bar stroke:36mm
Height or presser foot:15mm
Alternating movement:3-7mmClearance under presser foot (by pedal/handard) :16mm/10mm
Needle bar stroke:35.4mm
Amount of lift of walking foot:2.7-5.5mm
Working space:250*443mm
Post height:443mm
Motor: Clutch motor
FEATURES:

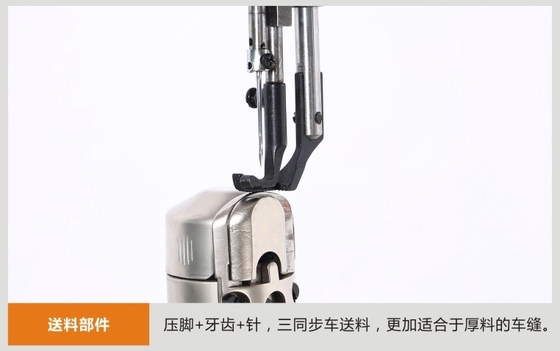

Feeding mechanism: the feed dog is at the most side of the needle plate, and the distance between the needle and the side of postbed is only 2.6mm.
Suitable for stitching the three-dimensional & small-curved articles, such as the portions of bottom & gore & corner.
High-postbed design( postbed height:443mm), suitable for stitching the large& three-dimensional articles, such as boots, bags, suitcase,...etc.
With special designed needle plate, suitable for stitching the small-curved portion, such as the bottoms & gores & corners of the bags, ..etc.
Applied with unison feed, ensured the high quality sewing result.
Sewing machine which need for Handbag as follows:
| No. | Model | Description | QTY (SET) |
picture | |||||
| 1 | XC-8700D | electronic feed dog feed lockstitch sewing machine Sewing speed:3800 stitch/min Height of preeser foot:6-13.0mm Stitch length:4.0mm Needle:DB*1 14# Voltage: 220V |
3 |
|
|||||
| 2 | XC-0398 | single needle direct drive computer double synchronous lockstitck sewing machine Sewing speed:2500 rpm Lift of preeser foot(Hand/Knee):6-13.0mm Max Stitch length:8.0mm Pu material in 6mm Nature leather in 3mm Needle:DP*17 18-22# Voltage: 220V Power: 750W |
20 |
|
|||||
| 3 | XC-8B-1 | Single needle,cylinder-bed,unison feed sewing machine Sewing speed: 2000 spm Needle:DP*17 #22(#19-23#) Max stitch length :5.0mm Sewing area: 258*110mm Cylinder dia:56mm Vertical rotary Hook Max sew thickness:6~7mm Voltage: 220V |
4 |
|
|||||
| 4 | XC-872-5 | Double needles needle lockstitch sewing machine sewing speed:3000rpm needle:DPx5 stitch length:7.0mm motor power:250W height of presser foot:13mm |
2 |
|
|||||
| 5 | XC-8365 | Single needle,unison feed, High postbed sewing machine.(Left-side postbed, standard hook) Sewing speed:1600rpm Needle:DP*17 #22 (#19-#23) Max stitch length:6.0mm Thread take up lever: Slide type Lubrication: Semi Automatic type Working space:258*553mm Post height:443mm Motor: Clutch motor 220V |
4 |
|
|||||
| 6 | XC-3020R | computer pattern sewing machine 300*200mm max speed 2500rpm Speed scope 200-2000rpm; 10 segment stting Stitch gas: 0.1-12.7mm minimum resolution 0.1mm Rotary Hook Motor: direct drive servor motor Voltage:220V |
1 |
|
