Product Details:
Payment & Shipping Terms:
|
| Sewing Area: | 300*200mm | Application: | Belt Factory |
|---|---|---|---|
| Speed: | 2500rpm | Needle Type: | DP*17 #14-24 |
| Press Foot Type: | Pneumatic | Needle Distance: | 0.1-12.7mm |
| Motor: | Direct Drive Sevo Motor | Hook Type: | Rotary Hook |
| Voltage: | 220V |
300 X 200mm Quick Release Clamp , Tailoring Machine Accessories For Glove
Product features:
1. Single machine arm auto transmission;
2. Neat and beautiful stitches originate from thoughtful design, easy to meet exporting requirement of high quality;
3. Advanced pattern software system (Dahao tech), powerful pattern editing function, convenient for customers DIY design patterns quickly;
4. Extra function customized retrofitting available(OEM/ODM).

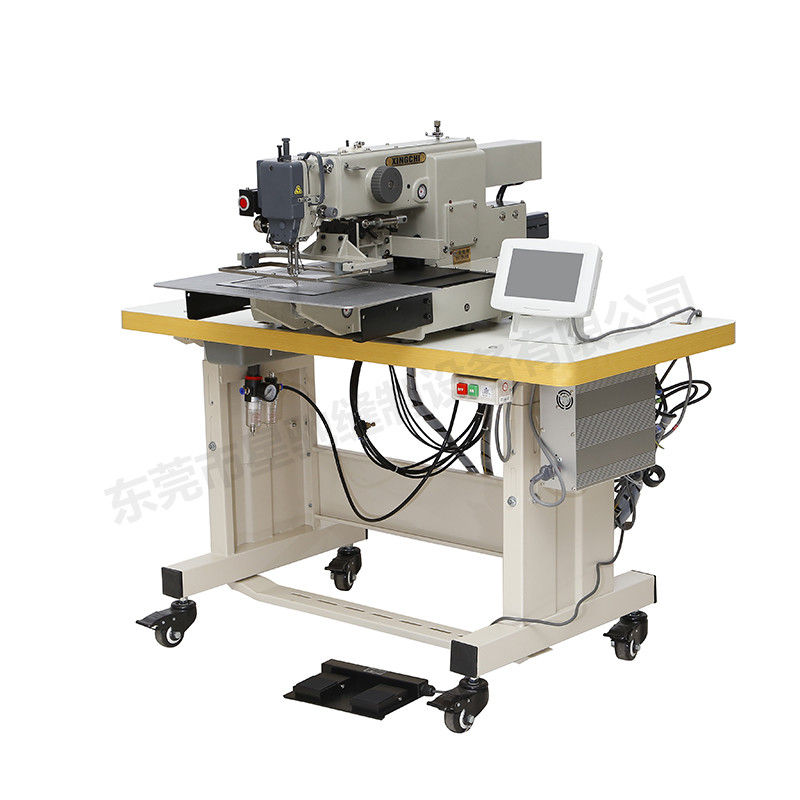

single needle lockstitch shoe pattern making sewing machine
|
Item
|
XC-3020R
|
XC-2516R
|
XC-2010R
|
|
Sewing range(X*Y)
|
300*200mm
|
250*160mm
|
200*100mm
|
|
Machine head
|
Single needle flat bed
|
/
|
/
|
|
Max speed
|
2200rpm
|
/
|
/
|
|
Speed setting
|
200-2000rpm 10 phrase (200rpm/phrase)
|
/
|
/
|
|
Stitch length
|
0.1~12.7mm
|
/
|
/
|
|
Max needles
|
8000 needles/pattern
|
/
|
/
|
|
Pattern memory
|
Inner memory unit max 999 patterns reserved USB connector
|
/
|
/
|
|
Pattern size quick setting
|
10%~200% both X,Y-axis Min 0.1% setting
|
/
|
/
|
|
Needle
|
DPx17#18
|
/
|
/
|
|
Hook type
|
Rotary big hook
|
/
|
/
|
|
Presser foot type
|
Pneumatic
|
/
|
/
|
|
Retrofitted presser foot lifting
|
32mm max
|
/
|
/
|
|
Presser foot lifting
|
20mm max
|
/
|
/
|
|
Presser foot adjustment range
|
4-10mm
|
/
|
/
|
|
Sewing motor
|
Direct drive motor 750W
|
/
|
/
|
|
Transmission motor(X,Y axis)
|
Stepper motor 550W
|
/
|
/
|
|
Power input
|
AC220V 50~60HZ Grounding wire protection
|
/
|
/
|
|
Product size
|
1200*1060*1170mm
|
/
|
1200*960*1170mm
|
|
Weight
|
176kg
|
/
|
150kg
|
From pieces of raw material, we clean, assemble, grind, etc., step by step and finally the our technology become part of the machine.
Before the machine serves the users, so many works had been done by our engineers, workers and QCs.
With such hard work, quality of our machines is filled with confidence and pride.
Our mission: to serve customers
* Great teamwork in pre-sales and after-sales.
* Excellent showroom for on-site check.
* OEM/ODM service
* Patent protection.
* Distribution channel.
Our vision: focus on quality & technology
* 18 years' effort on improving quality and technology.
* Large amount of R&D investment in sewing machine idustry.
* Great attention on feedback concerning quality and technology.
* Engineering and merchanical team work together to handle technology issues.
