| Condition: | New | Buckles Type: | 2/3/4/5 Buckles |
|---|---|---|---|
| After-sales Service: | Oversease Service Available In Vietnam, Cambodia And Myanmar | Machine Shipment State: | Ready To Plug And Play |
| Feeding: | Semi-automatic | Needle: | DPx17 #10 #11 #12 |
| High Light: | bra panty making machine,automatic underwear making machine |
||
bra buckle pattern sewing machine is suitable for automatically sewing bra buckles, as fast as 1500~2000 pairs per day. By applying our technology, bra factories are available to improve production quality and efficiency at the same time.
1) Sewing size adjustable (within 5 buckles).
2) Feeding: automatic electric sensor feeding.
3) Press foot style: Pneumatic.
4) Hook: double capacity shuttle hook.
5) Saving two labour workers compared to conventional sewing machine.
1) Sewing size adjustable (within 5 buckles).
2) Feeding: automatic electric sensor feeding.
3) Press foot style: Pneumatic.
4) Hook: double capacity shuttle hook.
5) Saving two labour workers compared to conventional sewing machine.

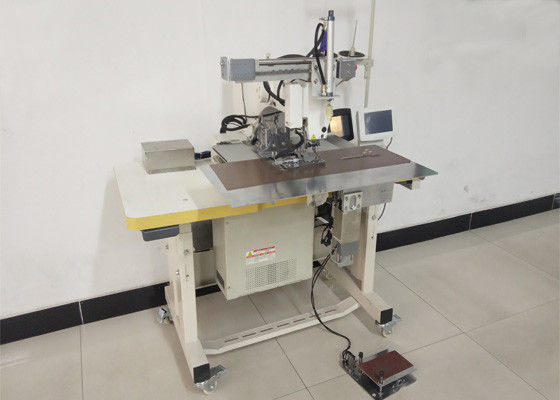

XC-218G-WXA bra buckle pattern sewing machine is suitable for automatically sewing bra buckles, as fast as 1500~2000 pairs per day. By applying our technology, bra factories are available to improve production quality and efficiency at the same time.
|
SPECIFICATIONS FOR XC-218G-WXA Bra Buckle Pattern Sewing Machine
|
|||
|
Efficiency
|
Max speed
|
rpm
|
2800
|
|
Speed rage
|
rpm
|
200~2000(10 phases)
|
|
|
Manpower Saved
|
person(s)
|
2
|
|
|
Main performance parameters
|
Max stitch qty
|
stitches/pattern
|
8000
|
|
Buckle dim
|
mm
|
Width: 1mm~8mm
Length: 25mm~95mm
|
|
|
Needle type
|
DP
|
17#18
|
|
|
Power system
|
Motor
|
servo motor
|
direct drive
|
|
Power
|
AC220V (grouding)
|
750W
|
|
|
Control
|
Electronic startup
|
one button
|
|
