Product Details:
Payment & Shipping Terms:
|
| Condition: | New | Stitch Formation: | Lock Stitch |
|---|---|---|---|
| After-sales Service: | Oversease Service Available In Vietnam, Cambodia And Myanmar | Sewing Speed: | 2700rpm |
| Needle: | DPx17 #10 #11 #12 | Hook And Eye Width: | 20-75mm |
| Highlight: | bra panty making machine,automatic underwear making machine |
||
Features:
1)· With national patent.
2). Automatic adapting make correct deviation prevent the left and right side nonuniform.
3). Automatic fixed position.
4). According to the simple adjustment function of different specifications.
5). New pneumatic scanning structure .
6). The high precision and uniform line collection of the electronic clamp.
7). Efficient,one every 8 seconds .stitch standard beautiful,improve product quality.
1) Sewing size adjustable (within 5 buckles).
2) Feeding: automatic electric sensor feeding.
3) Press foot style: Pneumatic.
4) Hook: double capacity shuttle hook.
5) Saving two labour workers compared to conventional sewing machine.

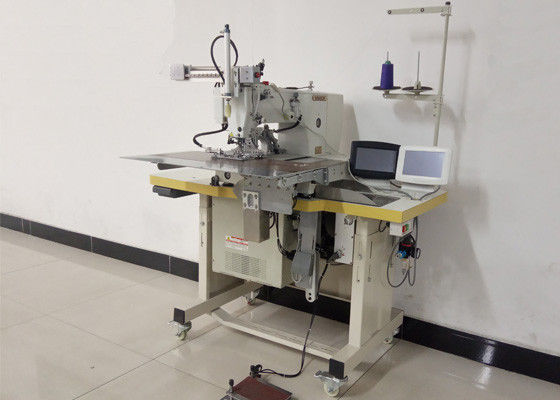

XC-218G-WXA bra buckle pattern sewing machine is suitable for automatically sewing bra buckles, as fast as 1500~2000 pairs per day. By applying our technology, bra factories are available to improve production quality and efficiency at the same time.
|
SPECIFICATIONS FOR XC-218G-WXA Bra Buckle Pattern Sewing Machine
|
|||
|
Efficiency
|
Max speed
|
rpm
|
2800
|
|
Speed rage
|
rpm
|
200~2000(10 phases)
|
|
|
Manpower Saved
|
person(s)
|
2
|
|
|
Main performance parameters
|
Max stitch qty
|
stitches/pattern
|
8000
|
|
Buckle dim
|
mm
|
Width: 1mm~8mm
Length: 25mm~95mm
|
|
|
Needle type
|
DP
|
17#18
|
|
|
Power system
|
Motor
|
servo motor
|
direct drive
|
|
Power
|
AC220V (grouding)
|
750W
|
|
|
Control
|
Electronic startup
|
one button
|
|
